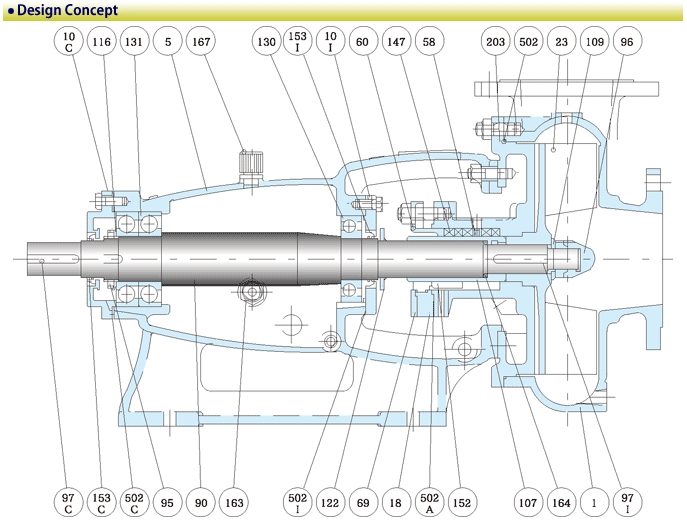

| Item |
Designation |
Stainless Steel |
Cast Iron |
| 1 |
Casing |
SCS13 |
SCS14 |
FC200 |
| 5 |
Bracket |
FC200 |
FC200 |
FC200 |
| 10C |
Bearing Cover |
FC200 |
FC200 |
FC200 |
| 10I |
Bearing Cover |
FC200 |
FC200 |
FC200 |
| 18 |
Seal Cover |
SUS304 |
SUS316 |
SUS304 |
| 23 |
Impeller |
SCS13 |
SCS14 |
FC200 |
| 58 |
Lantern Ring |
SUS304 |
SUS316 |
SUS304 |
| 60 |
Gland Cover |
SCS13 |
SCS14 |
FC200 |
| 69 |
Seal Cover |
SUS304 |
SUS316 |
SUS304 |
| 90 |
Shaft |
SUS304 |
SUS316 |
S45C |
| 95 |
Bearing Nut |
S45C |
S45C |
S45C |
| 96 |
Impeller Nut |
SUS304 |
SUS316 |
SUS304 |
| 97C |
Key (Coupling Side) |
S45C |
S45C |
S45C |
| 97I |
Key (Impeller Side) |
SUS304 |
SUS316 |
SUS304 |
| 107 |
Shaft Sleeve |
SUS304 |
SUS316 |
SUS304 |
| 109 |
Impeller Washer |
SUS304 |
SUS316 |
SUS304 |
| 116 |
Bearing Washer |
SPC |
SPC |
SPC |
| 122 |
Deflector |
IIR |
IIR |
IIR |
| 130 |
Ball Bearing |
SUJ |
SUJ |
SUJ |
| 131 |
Ball Bearing |
SUJ |
SUJ |
SUJ |
| 147 |
Gland Packing |
|
Wide choice of materials available. |
|
| 152 |
Mechanical Seal |
|
|
|
| 153C |
Oil Seal |
NBR |
NBR |
NBR |
| 153I |
Oil Seal |
NBR |
NBR |
NBR |
| 163 |
Oil Gauge |
YBsC+Glass |
YBsC+Glass |
YBsC+Glass |
| 164 |
O-Ring |
|
Wide choice of materials available. |
|
| 167 |
Oil Cap |
Acryl |
Acryl |
Acryl |
| 203 |
Delivery Cover |
SCS13 |
SCS14 |
FC200 |
| 502 |
Gasket |
|
Wide choice of materials available. |
|
| 502A |
Gasket |
|
|
|
| 502C |
Gasket |
Three Sheet |
Three Sheet |
Three Sheet |
| 502I |
Gasket |
Three Sheet |
Three Sheet |
Three Sheet |
|
|
