HONDA本多级联泵FRS/FR具有特殊功能的叶轮，适合于低流量和各自的范围为1?3M3/小时的流量和扬程120至140米高扬程应用。应用于食品饮料行业,水处理行业,化学工业及其他各种行业。
| 材质 |
1 |
不锈钢SCS13/SCS14/SCS16 |
|
|
| 2 |
铸铁 FC200 |
|
|
| 球墨铸铁 FCD450 (For HC Series Pumps) |
|
|
| For cast-iron material the pump model is FR.(However, the impeller is SUS304) |
|
|
| 温度 |
-20oC～80oC |
|
|
| |
-5oC～80oC in case of Cast & Ductile Iron |
|
|
| 轴封 |
1 |
填料式 |
| Self and external flushing type |
| 2 |
机械密封. |
| |
a. |
Single mechanical seal. |
| Include balanced and unbalanced types. |
| Inside and outside types. |
| |
b. |
Double Mechanical Seal. |
| |
c. |
Additional Special Mechanical Seal may be installed on request. |
| 3 |
The shaft seal dimensions are structured to serve as gland packing and mechanical seal. |
| 轴承 |
自润式球面轴承 |
|
|
|

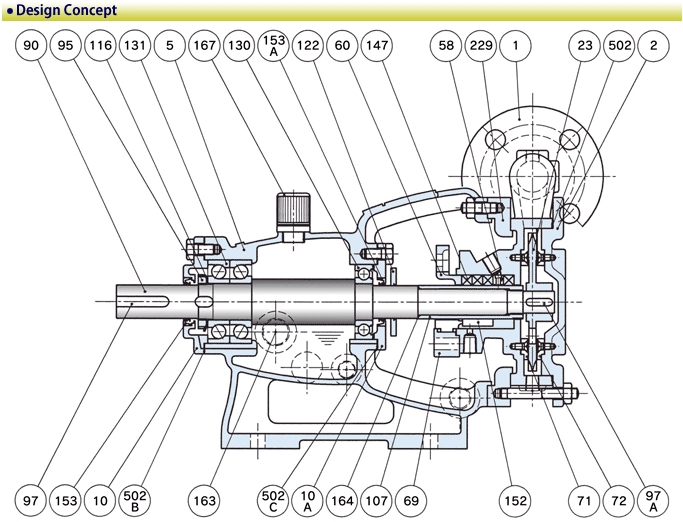

备件清单
| Item |
Designation |
Stainless Steel |
Cast Iron |
| 1 |
Casing |
SCS13 |
SCS14 |
FC200 |
| 2 |
Suction Cover |
SCS13 |
SCS14 |
FC200 |
| 5 |
Bracket |
FC200 |
FC200 |
FC200 |
| 10 |
Bearing Cover |
FC200 |
FC200 |
FC200 |
| 10A |
Bearing Cover |
FC200 |
FC200 |
FC200 |
| 23 |
Impeller |
SUS304 |
SUS316 |
SUS304 |
| 58 |
Lantern Ring |
PTFE |
PTFE |
PTFE |
| 60 |
Gland Cover |
SCS13 |
SCS14 |
FC200 |
| 69 |
Seal Cover |
SUS304 |
SUS316 |
SUS304 |
| 71 |
Channel Ring |
SCS13 |
SCS14 |
FC200 |
| 72 |
Channel Ring |
SCS13 |
SCS14 |
FC200 |
| 90 |
Shaft |
SUS304 |
SUS316 |
S45C |
| 95 |
Bearing Nut |
S45C |
S45C |
S45C |
| 97 |
Key (Coupling Side) |
S45C |
S45C |
S45C |
| 97A |
Key (Impeller Side) |
SUS304 |
SUS316 |
SUS304 |
| 107 |
Shaft Sleeve |
SUS304 |
SUS316 |
SUS304 |
| 116 |
Bearing Washer |
SPC |
SPC |
SPC |
| 122 |
Deflector |
IIR |
IIR |
IIR |
| 130 |
Ball Bearing |
SUJ |
SUJ |
SUJ |
| 131 |
Ball Bearing |
SUJ |
SUJ |
SUJ |
| 147 |
Gland Packing |
|
Wide choice of materials available. |
|
| 152 |
Mechanical Seal |
|
|
|
| 153 |
Oil Seal |
NBR |
NBR |
NBR |
| 153A |
Oil Seal |
NBR |
NBR |
NBR |
| 163 |
Oil Gauge |
YBsC+Glass |
YBsC+Glass |
YBsC+Glass |
| 164 |
O-Ring (Sleeve Side) |
|
Wide choice of materials available. |
|
| 167 |
Oil Cap |
Acryl |
Acryl |
Acryl |
| 229 |
Casing Spacer |
FC200 |
FC200 |
FC200 |
| 502 |
Gasket (Casing) |
|
Wide choice of materials available. |
|
| 502B |
Gasket (Bearing Cover) |
Three Sheet |
Three Sheet |
Three Sheet |
| 502C |
Gasket (Bearing Cover) |
Three Sheet |
Three Sheet |
Three Sheet |

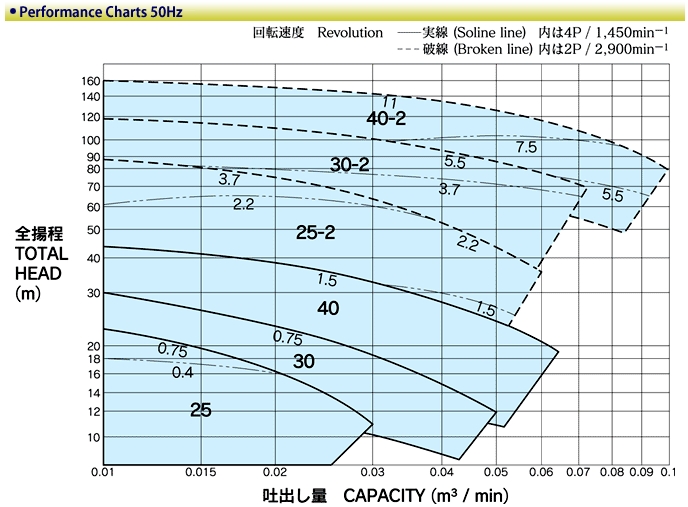

运行参数

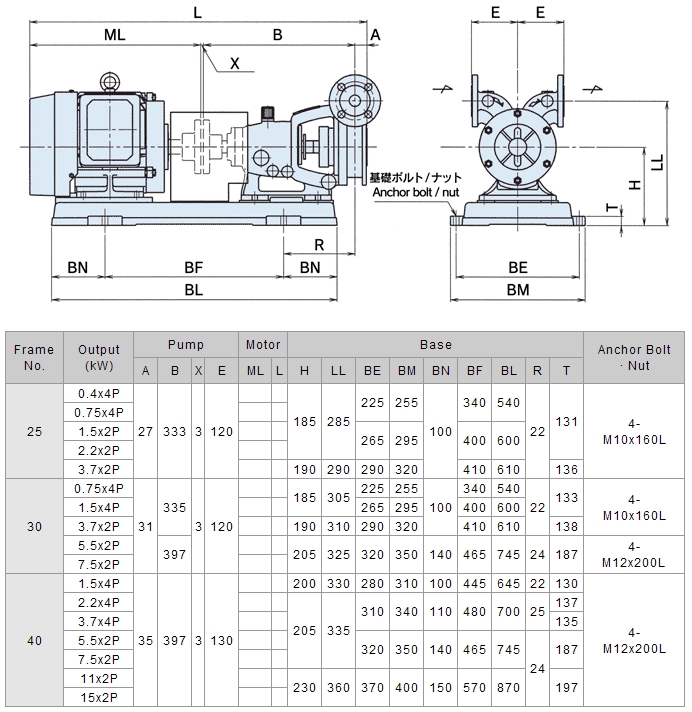

尺寸图
|
