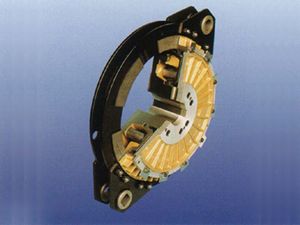

 Cut model showing inside |
Product of Ortlinghous company in Germany. Pneumatic driven type. Enguneering service by OSAKI DENGYOSHA. |
 |
| MERITS: | |
| 1. | No timing adjustment for clutch and brake as their related action. |
| 2. | As compacted, easy to design and assembling. |
| 3. | Easy to assemble and maintenance for its separated type discs. |
| 4. | Rasonable cost. |
| Specification and dimension. Please refer to us. |
|
|
| Please specify followings on your order. |
| 1. | Brake name. Type and model No. | ||
| 2. | Brake torque. |
Nm
|
|
| 3. | Diameter of shaft hole. |
φ
|
|
| 4. | Input voltage. |
(of power unit) AC/DC
|
V
|
| 5. | Power source unit. |
Model No.
|
V
|
| 6. | Former mfg.No. (for replacement) | No. (for replacement) | |
| 7. | Special spec. | ||
| 8. | Reqired pieces and delivery date |
Piece.
|
Date. |
| 9. | Your name and company name. |
|
|
| 10. | Your correspondence No. | Tel/Fax/E-mail： | |
