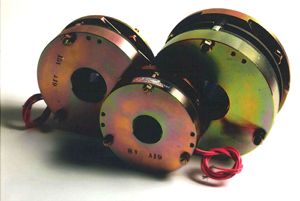

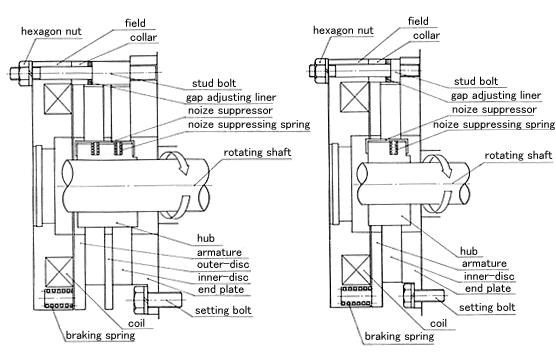

ACTION: Exciting the coil, field attracts armature beyond spring force, and then the produced gap makes inner-disc free. When the power is shut off, armature is released and innwer-disc produces braking torque with spring force. |
 |
| MERITS: |
| 1. | Quiet: | Protected from running vibrating noize. |
| 2. | Many variations: | Applicable from general use to inverter used motors. |
| 3. | Environmental: | Asbestin free material is used. |
| 4. | Maintenance free: | Long time adjustment free, as low wear friction material used. |
| 5. | Strong body: | Mechanical life is 2milion times. (1milion for model 55/80) |
| 6. | Heat radiation: | High heat radiation and frequent braking for large friction cisc. |
| 7. | Compacted power unit: | Compacted power unit can be selected. |
|
| Major characteristics. |
|
characteristics
|
model No.
|
|||||||||
|
02
|
04
|
08
|
15
|
22
|
40
|
55
|
80
|
|||
|
2.0
|
3.7
|
7.5
|
15
|
22
|
37
|
55
|
75
|
||
|
90
|
90
|
90
|
90
|
90
|
90
|
90
|
90
|
||
|
388
|
388
|
299
|
226
|
226
|
201
|
201
|
201
|
||
|
0.23
|
0.23
|
0.30
|
0.40
|
0.40
|
0.45
|
0.45
|
0.45
|
||
|
37
|
37
|
60
|
75
|
75
|
105
|
308
|
308
|
||
|
220
|
220
|
360
|
450
|
450
|
630
|
840
|
840
|
||
|
1800
|
|||||||||
|
1.9
|
1.9
|
2.6
|
5.1
|
5.1
|
6.9
|
8.7
|
8.7
|
||
| suitable power unit |
HD-12SY
|
HD-100M
|
HD-110M3
|
|||||||
|

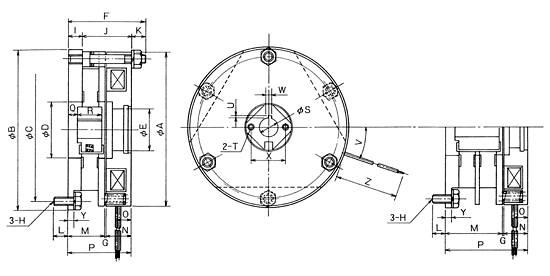

| Major Dimensions |
|
model No.
VNB |
Major Dimensions
|
|||||||
|
φB
|
φC
|
F
|
G
|
H
|
R
|
SH7
|
WJS9
|
|
|
02
|
107
|
95
|
52
|
0.3
|
M6
|
16
|
14
|
5
|
|
04
|
107
|
95
|
52
|
0.3
|
M6
|
16
|
14
|
5
|
|
08
|
125
|
112
|
52
|
0.3
|
M6
|
20
|
16
|
5
|
|
15
|
152
|
135
|
67
|
0.3
|
M8
|
25
|
24
|
8
|
|
22
|
152
|
135
|
67
|
0.3
|
M8
|
25
|
24
|
8
|
|
40
|
167
|
150
|
73
|
0.3
|
M8
|
28
|
28
|
8
|
|
55
|
172
|
153
|
97.5
|
0.4
|
M10
|
40
|
33
|
8
|
|
80
|
172
|
153
|
97.5
|
0.4
|
M10
|
40
|
33
|
8
|
| Please refer us about the dimensions not shown above. |
| Dimenson |
 |
|
| Structure |
 |
|
| Please specify followings on your order. |
| 1. | Brake name. Type and model No. | ||
| 2. | Brake torque. |
Nm
|
|
| 3. | Diameter of shaft hole. |
φ
|
|
| 4. | Input voltage. |
(of power unit) AC/DC
|
V
|
| 5. | Power source unit. |
Model No.
|
V
|
| 6. | Former mfg.No. (for replacement) | No. (ex; EY-1234) | |
| 7. | Special spec. | ||
| 8. | eqired pieces and delivery date. |
Piece.
|
Date. |
| 9. | Your name and company name. |
|
|
| 10. | Your correspondence No. | Tel/Fax/E-mail： | |
