ACTION: STC type synchiro tooth clutch engages driven shaft and subordinated shaft at definite position engaging. (A clutch for definite position engaging ) STC has a special tooth to engage at one definite position on the circumference. STC is used for position setting or synchronized operation of machne tool, printing machine and industrial machines. |
 |
| MERITS: |
| 1. | Engaging with the speed more than twice of former clutches (100 rpm ) is avairable. |
| 2. | Compact and high torque (100 N-m) |
| 3. | Long life with special low wear hardened teeth. |
| 4. | No special noize of tooth clutching. |
|
| Specification: |
|
Torque
|
Voltage
|
Wattage
|
Weight
|
|
100Nm
|
DC24V
|
32W *
|
2kg
|
|

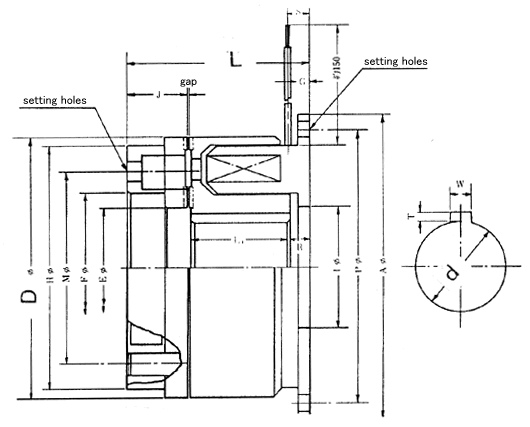

| Dimension: |
|
φA
|
P
|
φD
|
L
|
φd
|
T
|
W
|
|
124
|
106
|
86
|
60
|
30
|
7
|
3
|
|

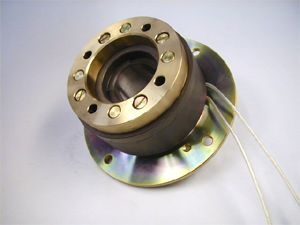

| Illustration. |
 |
